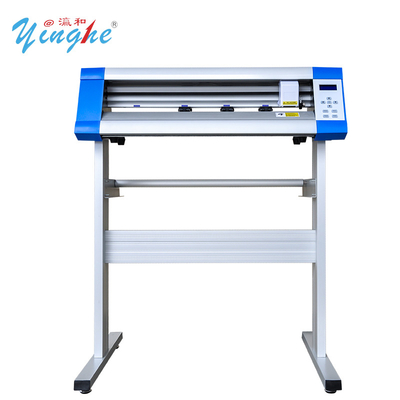

Yinghe PU Vinyl Cutting Plotter YH-630G Automatically Contour SAV Sticker 630mm Cutting
WhatsApp: +8615975538009
Feature
1:With ARMS sensor
2: High force to cut reflective film
3: Real 128MB memory
4:High precision steel roller: guarantee 5 meters without diviation of paper feeding
5:Low noise: Work in quiet
6:High performance 32-bit processor with ARM Cortex-M3
7: Support to cut 2mm letters
8: Can work with U disc directly
Parameter
| Media Way | Floor stand | |||
| Main Board | High-performance & intelligentARM 32 CPU; 128MB memory | |||
| Driver | High speed stepping motor, micro-step driver | |||
| Max. Feed Width | 730mm | 1300mm | ||
| Max. Cutting Width | 630mm | 1200mm | ||
| Max.Cutting Speed | 500mm/s | |||
| Cutting Force | 0-500g/1000g(digital adjustment) | |||
| Mechanical Precision | 0.01mm | |||
| Repeatable Precision | < +-0.1mm | |||
| Plotter Instruction | DM-PL/HP-GLAutomatic Identification | |||
| Interfaces | USB / Serial port, U-disc port | |||
| Power Supply | AC110V /220V±10%, 50Hz/60Hz | |||
| Laser point Positioning | ARMS(Automatical Registration marks system) | |||
| Noise at Work | ≤50 DB | |||
| External Dimension | 1045*330*375mm | 1590*330*375mm | ||
| Shipping Weight | 23kg | 33kg | ||
How to place a order:
1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 30% deposit will start test machine carefully. Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the printer, there is user manual and video to guide you install, operate and maintain.
5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staffs.
