| ZK-Q7PLUS | |
| Basic parameters | |
| Data transmission mode | USB |
| L*M*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto blank skip | N |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |

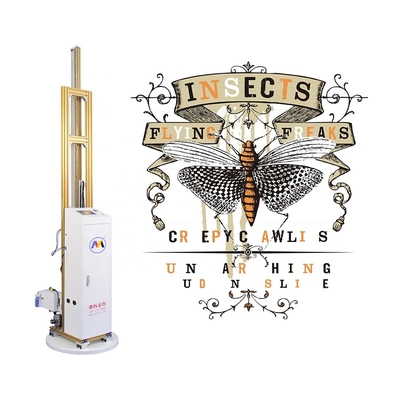

ZKMC wall paint machine adopts muti-axis computer control system. The machine is connected to the computer via Ethernet cable. As long as the design pictures(photos) is put into the computer It can print on the wall directly. Such as: portrait, landscape, oil, frameless, ink,calligraphy, cartoon painting, etc. Wall printing machine just like normal office printer, it is easy to operate, fast-drying ,quickly and convenience. The output is fast, efficient, flexible and personalized. Not only can reflect the color texture, gradient color, intermediate color effect, but also show the perfect embodiment of color layering, gradient and transition color effects.
Connect Wall Printing Machine with laptop,input the picture,the picture can be painted on the wall automatically. It leads to a new trend of customized wall decoration, even 3D effect.
Advantages:
1. Unique, novelty, individuality
Our machine is totally one kind of inkjet printers,which can totally replace the traditonal manual painting; any picture can be available, just input it in the computer, any picture can paint on the wall directly
2. Broad market prospective
Family TV setting wall, sofa setting wall, bedroom, dining room, children room, corridor, porch, staircase wall, hotel, club, plaza mural company, corporate image, kindergarten drawing, hairdressing salon, hospital, shopping mall, government propaganda pictures,etc.
3. High profit, time saving, low labor cost
The expense is less than USD1, returns 50-100ml per sqm.and the machine can run at least 22 hours one day and you needn't worry about paying more,one machine can do the job more than four persons. No need of large painting team.
4. Stable, High efficiency
Two sensors, integrated circuit chips, add Integrated Voltage Regulator and ink heating program, encoded motor, all those improvement make our printer more stable and high efficiency
5. Printhead
Automatic printhead cleaning and the uneven wall detecting, the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
6. Intelligent lift printhead
Adjust the printhead according to the different printing heights.
7. High Resolution
Printing resolution from 720dpi up to 2880dpi.
8. Warranty
One year warranty and lifetime maintenance, free to replacement parts within warranty period
9. CE certificate for wall printer, Rohs for ink.
Available painting materials
it can be widely used for painting on variou walls, like putty powder wall, diatom mud wall, latex paint wall, shell powder wall, chemical fiber canvas, paper, etc.
http://zkmc.en.alibaba.com
Zhongkemeichuang (ZKMC), as the exhibitor of IFA 2018, Berlin, finished our wall painting show there successfully. Currently, we're looking for business cooperation, buyer, seller, distributor worldwide, besides Russia and Belarus. Because we've already had sole agent there.
Beijing Zhongkemeichuang (ZKMC) Science and Technology Ltd. is the largest professional wall printing machine manufacturer. We have been devoted in researching and developing the new technology of wall printer since 2013. Over 900 square meters workshop is located in Beijing. As a leader manufacturer in wall printer field, our company was invited to participate in the CCTV TV show "I Love Inventions" of Channel 10.
Our customers just need to connect wall printing machine with laptop, input the picture to it. Then the picture can be painted on the wall automatically. It leads to a new trend of customized wall decoration.
1 plwwood packing for machine, dimension 237*81*68cm, gross weight ~220kg
